Descriptions

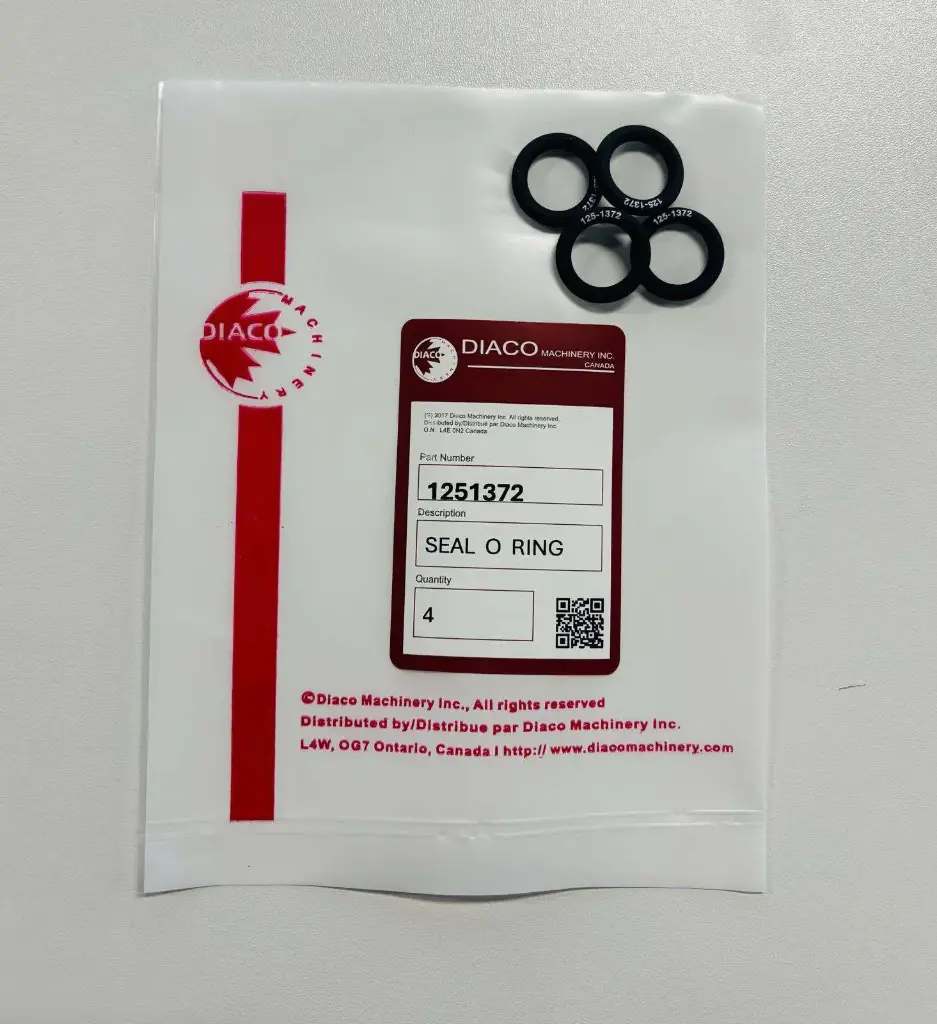

O-Rings are used in static sealing and some dynamic applications.
O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.
Attributes:
- Cross Section Diameter (in): 0.139
- Inside Diameter (in): 0.546
- SAE AS568 Dash Size: -207
- Material: FKM (75),FKM,FKM - Fluoroelastomer,Fluoroelastomer (FKM) Rubber,Polytetrafluoroethylene (PTFE) Plastic
- Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
- Notes: Dimensions and material descriptions provided for reference only.
- Polymer: FKM (Fluorocarbon)
- Applications: High temperature applications requiring resistance to air, fuels, lubricants and hydraulic fluids
- Material Hardness: 75A
- Not Compatible With: Amines; Brake fluids; Engine Coolant; Fire Resistant Fluids; Ketones; Steam; Water
- Compatible With: Diester lubricants; Halogenated hydrocarbons (above 100 Deg. C); Highly resistant to compression set; Petroleum fluids; Phosphate ester fluids; Silicone fluids; Some acids
- Dash Size: 207
- Temperature (°F): -40° - 350°
- Seal/O-Ring Type: Standard
Compatible Models
TRACK-TYPE TRACTOR
D6R II
GENERATOR
SR4 SR4B
GENERATOR SET
G3516C G3516E G3520C G3520E
EXCAVATOR
325C
GAS ENGINE
G3516B G3508B G3608 G3520B G3508 G3512B G3612 G3512 G3606 G3516
WHEEL LOADER
966H 980 XE 972H 980H 982 XE
