Descriptions

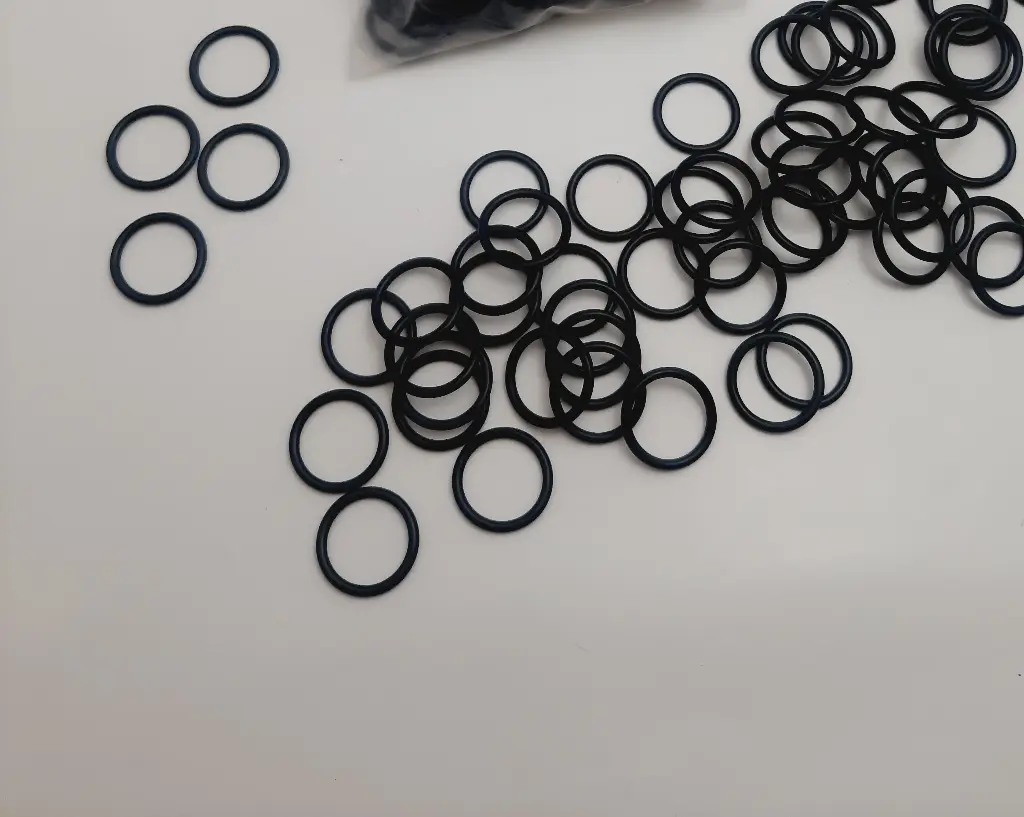

O-Rings are used in static sealing and some dynamic applications. O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.
Attributes:
- Cross Section Diameter (in): 0.087
- Inside Diameter (in): 0.644
- SAE AS568 Dash Size: -908
- Material: NBR (90),NBR - Nitrile,Nitrile (NBR),Polytetrafluoroethylene (PTFE) Plastic,Nitrile / NBR / HNBR / XNBR Rubber
- Material Description: Nitrile (NBR) rubber is capable of service temperatures of -40 to 100C and is resistant to fuel oils, gasoline, ultra low sulfur diesel fuel and lubricants. Nitrile rubber is not recommended for applications that require resistance to bio-diesel or coolant.
- Notes: Dimensions and material descriptions provided for reference only.
- Polymer: NBR (Nitrile butadiene)
- Applications: Ambient temperature fuel handling; High and low pressure LPG service; Hydraulic fluids (to 10,335 kPa/1,500 psi); Power steering seals; Radiator thermostat seals
- Not Compatible With: Automotive and aircraft brake fluids; High levels of ozone; Ketones; Phosphate ester fluids; Strong acids; UV light
- Material Hardness: 90A
- Compatible With: Abrasion resistant; Alpha-Olefin base synthetic lubricants; Ethylene Glycol; Hydrocarbon fuels; Petroleum base lubricants; Silicone oils and greases; Water, water base engine coolants; ORFS, STORS seals
- Dash Size: 908
- Temperature (°F): -40 - 212
- Fitting Size (in): 3/4 – 16
- O-Ring Type: Straight Thread O-ring (STOR)
Compatible Models
GENERATOR
SR4B SR4 SR4BHV
TRUCK ENGINE
3176 3408B 1673C 3406E 3406C 3406B C13 3306B C-10 C-15 3126B 3408 3406 3306 3208 3116
INTEGRATED TOOLCARRIER
IT12B IT14G IT28G IT28F IT28B IT18B
WHEEL TRACTOR-SCRAPER
627K LRC
GEN SET-MILITARY
3608
WHEEL SKIDDER
518 528
ROTARY DRILL
MD6310
TRACK FELLER BUNCHER
1190 1390 TK751 1190T 1090
HARVESTER HEAD
HH45 HH55 HH65
EXCAVATOR
320-A L 320-A N 325C L 321B 350-A L 350 L 325C M325D MH 374F 320N 245B 320 L M325D L MH 390D L 225 235 320-A 215 375-A 245 M312 M315
MULTI TERRAIN LOADER
257B 247B
COMPACT TRACK LOADER
259D
WHEEL TRACTOR
650B 651E 660B 631E 631C 641B 613 627 621 641 651 657 657E 633C 621E 627B
HYDRAULIC CONTROL
192 193 191 183 184 181 182 165 173B 163 161 143 153 151 141 140
VEHICULAR ENGINE
D348 D349 3516 3512
TRACK LOADER
973 933 931 943 941 953 951C 951B 953C 941B 953D 977K 955K 955L
PETROLEUM ENGINE
C15
SOIL COMPACTOR
815 825K 825B
BACKHOE LOADER
442D 430D 438C 426B 438D 438B 416 426 424D 428 424B 446B 420D 432D 420F 438 436 428D 416C 416D 428B 416B 428C
WHEEL DOZER
834 824B 824K 814 824
MULCHING HEAD
HM315
LANDFILL COMPACTOR
836 836K 816 826K
COMPACT WHEEL LOADER
910F 910E 910 914G
WHEEL LOADER
960F 972G 972H 950B 950E 950G 950F 962G 950M G926 988B G916 988K 966D 966C 966E 966H 966G 930H 966M 930R 930T 936E 924G 928F 938G 938F 926E 928G 980 928HZ 988 992 916 920 980G II 926 930 936 950 924GZ 924HZ 980B 992B 980C 980F 980H 980G 970F 966G II 950F II
TELEHANDLER
RT80 TH82 TH83 RT100 TH350B TH103 TH62 TH63
SOIL STABILIZER
SS-250
ARTICULATED TRUCK
D35HP D250B D400
GRAPPLE-LOG LOADING
GLL55 GLL52 GLL60
WHEELED EXCAVATOR
M318C M322C M318C MH M315C M316C M313C
INDUSTRIAL ENGINE
3304 3306 3412 3406 3512 3516 3508 D399 D379 D348 D349 D346 3512E D333C C13 D330C D379B
WHEEL SCRAPER
666B 631D 631E 621E 633B 633D 657E 623F 623E 613C 613B 639D 615 633 613 666
QUARRY TRUCK
775B 771D 771C
ASPHALT SCREED
10 FT
TRACTOR
772B 776 768C
GAS ENGINE
G379A G3306 G379 G3612 G3608 G3412
BULLDOZER
834U 834S 7SU 7S LGP 8S 9R 4S 10C 5A 5S 6A 6S 7A 10S 7S 7U 10U 8C 8A 4A
PUMPER
SCT673 CPT372 SPS342 SPT343 SPT342
UNDERGROUND ART TRUCK
AE40 AE40 II AD55 AD30 AD45 AD40
FELLING HEAD
HF222 HF221 HF201 HFW232 SH-58 HF181
LOAD HAUL DUMP
R1600G R1700G R1700 II R2900G R1300 R1600 R2900
MOTOR GRADER
120G 120B 16 140B 140G 130G 16M 140 14E 24M 120 160G 12F 12E
WINCH
528 57 54
BACKHOE
D4 BH30 BH27
TRACK-TYPE TRACTOR
D10 D6R II D3B D4G D4E D5B D6C D6D D6R D6E D4 D3 D6 D5 D10R D4E SR D7G2 D7F D7G D8R D8K D8L D8H D9G D6G2 XL
ASPHALT PAVER
AP-800 AP-800B AP-1000F
MARINE ENGINE
3208 3304 3412 3408 3406 3516 3512 3508 3616 D379A D379B D399 3408B 3406B D348 D398A D398B 3512E C280-16 C175-16 3304B C280-6 C280-8
PIPELAYER
561D PL72 572G 583K 571G
VIBRATORY COMPACTOR
CS-323C CS-553 CS-551 CS-323 CS-563 CP-323C CP-563C CB-614 CB-224B CP-563 CP-323 CB-214B CP-553 CB-434 CS-563C
RIPPER SCARIFIER
16G
GENERATOR SET
C32 3406C 3516C
ENGINE
3512E
COLD PLANER
PR-1000C PR-1000
ROAD RECLAIMER
RR-250
ENGINE - MACHINE
3176C 3116 3306 3204 3208 C4.4
GEN SET ENGINE
3408B 3408C G3412C 3304B G3516B 3306 3304 3412 3208 3412C 3508 3408 3512 3516
CHALLENGER
55 75C 85C 35 45 70C
TRANSMISSION
CX31
ROTARY/TRACK DRILLS
MD6640
RIPPER
977 951 955 6 5 4 10
SKID STEER LOADER
226B 216B 236 248 246 252B 216 242B 228 226 232B 236B
TRUCK
793F OEM 775D 777D 769B 769D 769C 789 795F XQ 69D 785D 773B 769 773
TRACK-TYPE LOADER
977K
