Descriptions

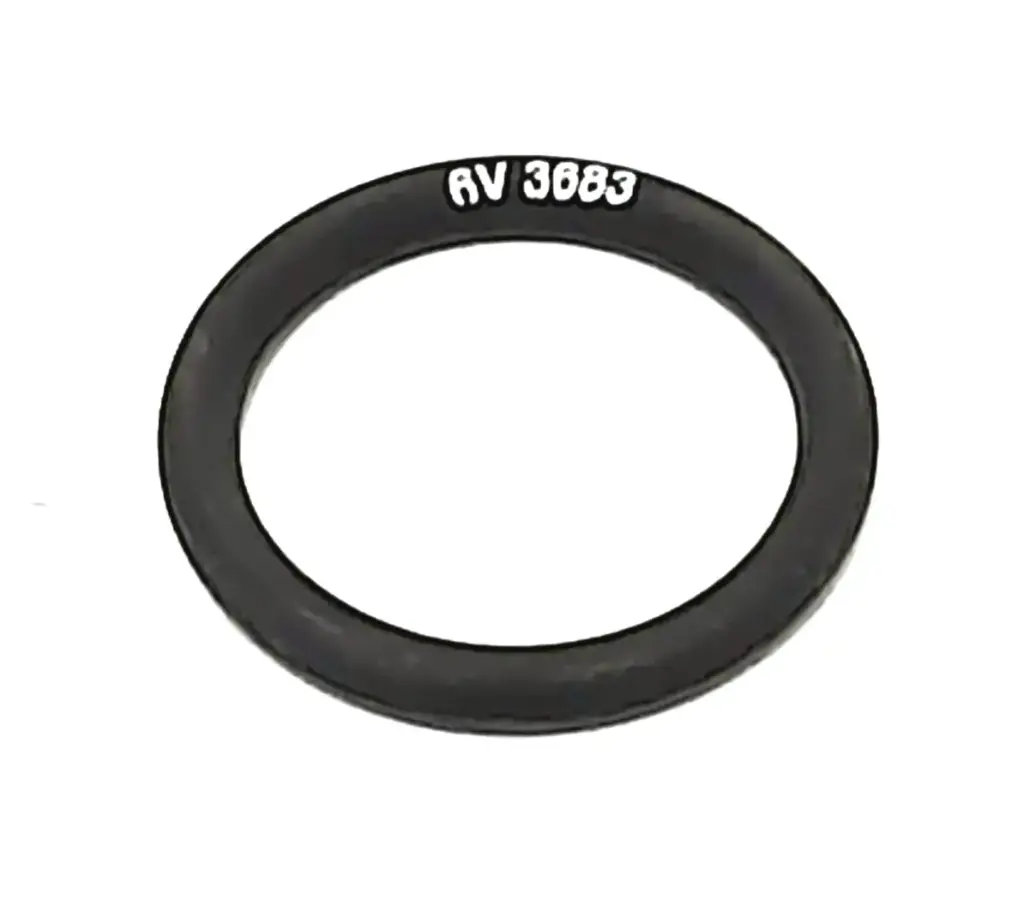

O-Rings are used in static sealing and some dynamic applications. O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation. Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.
Attributes:
- Cross Section Diameter (in): 0.139
- Inside Diameter (in): 0.921
- SAE AS568 Dash Size: -213
- Material: FKM - Fluoroelastomer,FKM (75),FKM,Fluoroelastomer (FKM) Rubber
- Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
- Notes: Dimensions and material descriptions provided for reference only.
- Polymer: FKM (Fluorocarbon)
- Applications: High temperature applications requiring resistance to air, fuels, lubricants and hydraulic fluids
- Not Compatible With: Amines; Brake fluids; Engine Coolant; Fire Resistant Fluids; Ketones; Steam; Water
- Material Hardness: 75A
- Compatible With: Diester lubricants; Halogenated hydrocarbons (above 100 Deg. C); Highly resistant to compression set; Petroleum fluids; Phosphate ester fluids; Silicone fluids; Some acids
- Dash Size: 213
- Temperature (°F): -40 - 350
- Seal/O-Ring Type: Standard
- Primary Sealing Material: Rubber
Compatible Models
UNDERGROUND ART TRUCK
AD55 AD30
TRUCK ENGINE
3406C 3406B C-15 C13 C15
WHEEL TRACTOR
631E 637E
POWER MODULE
PM3456
INTEGRATED TOOLCARRIER
IT28G IT28F
PETROLEUM ENGINE
C280-12
LOAD HAUL DUMP
R2900G R2900
REMAN ENGINE
3406E
COLD PLANER
PM-565
WHEEL LOADER
966F II 928G 992D 972G 960F 980C 980F 980H 950B/950E 928F 938G 938F 966D 966F 966E 966G 950B 950E 950G 962G 950F 970F 950F II
ENGINE - MACHINE
C4.4
GEN SET ENGINE
C280-16 3608
MARINE ENGINE
3616 3612 C15 C280-16 C280-12 C280-6 C280-8 C175-16
MARINE AUXILIARY
3608
TRACK FELLER BUNCHER
1090 1190T 2390 541 TK751 1390 1190 551 552
INDUSTRIAL ENGINE
C15 C3.6
WHEEL SCRAPER
657 657B TRUCK 775D 773D 769D
QUARRY TRUCK
771D
EXCAVATOR
M312 M315 M318
GAS ENGINE
G3612 G3616 G3608 G3606
